Gabion Netting is constructed from high-strength, corrosion-resistant steel wire woven or welded into wire mesh cages, filled with stones. Its flexible structure can adapt to foundation deformation. The anti-corrosion process ensures long-term durability. On-site assembly and filling are all that's needed. Gabion Netting is simple to construct and has a lower overall cost.
Key Features
Foundation Adaptability
Utilizing a double-twisted hexagonal mesh structure, the mesh boasts excellent flexibility and elongation, automatically adjusting to slope settlement and frost heave, effectively preventing cracking and voids common in rigid structures.
Filtering and Drainage
The system's natural porosity is approximately 30%, allowing free water flow and rapid elimination of hydrostatic pressure behind the structure while precisely intercepting soil particles.
Ecological Regeneration
Over time, soil naturally accumulates in the gaps between the stones, facilitating root penetration and growth of native plants, achieving a self-healing integration of slope protection and vegetation.
Corrosion Resistance and Lifespan
Depending on the project environment, hot-dip galvanizing, Galfan alloy coating, or external plastic coating processes can be selected, resulting in an overall structural design lifespan of 30 to 70 years.
Construction Efficiency
All components are prefabricated in the factory and directly assembled and filled on-site. Eliminating the concrete pouring and curing period reduces the overall construction period by more than half.
Overall economic benefits
The internal filler material can be sourced locally, reducing construction costs by 20% to 30% compared to traditional masonry or concrete slope protection, and the cost advantage of maintenance throughout the entire life cycle is even more obvious.
Application Areas
Water Conservancy Projects: Riverbank protection, embankment reinforcement, canal lining
Transportation Engineering: Highway and railway slope protection,
Ecological Restoration: Mine revegetation, wetland creation
Customized Services
Customized Anti-corrosion Process
Select solutions based on environment: galvanized for inland areas, Galfan for coastal saline-alkali land, and PVC coated for heavy corrosion or landscaping.
01
Customized Mesh Size and Wire Diameter
Mesh size range: 50-150mm, to match stone particle size; wire diameter: adjustable from 2.0-6.0mm, with thicker edge wires for load-bearing parts.
02
Customized Box Dimensions
Length: 1-6 meters, width: 0.5-2 meters, height: 0.3-1 meter. Common specifications have readily available molds; CNC cutting error ±2mm.
03
Customized for Special Scenarios
Frost-resistant coating for permafrost regions; UV-resistant PVC for tropical regions; customizable colors and shapes for landscaping; planting bags for mining areas.
04
Sampling and Delivery
Samples available 5-7 days after specification confirmation; bulk orders delivered 15-25 days; batch traceability.
05
Company Advantages
Production Capacity

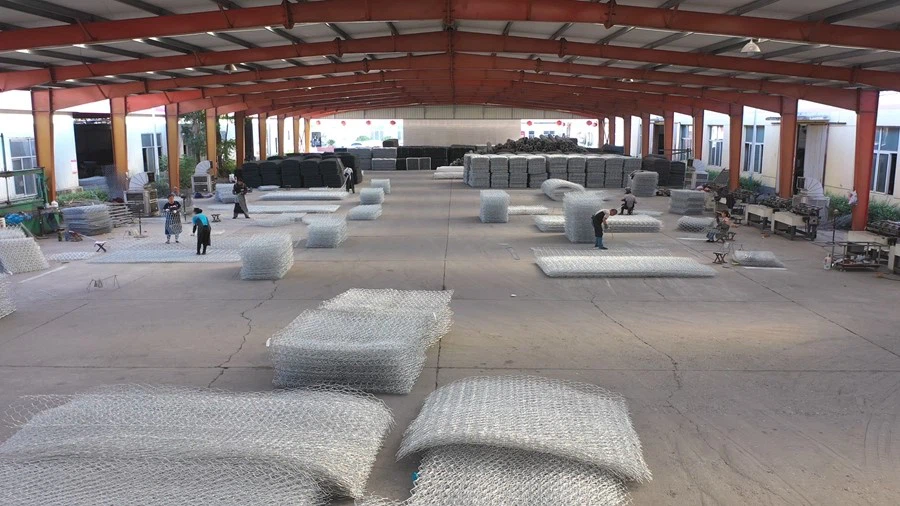

Own fully automated braiding lines with a daily output of 100,000㎡/annual over 5 million㎡, meeting the stringent capacity and delivery time requirements of large-scale multinational projects.
Quality Control and Assurance
Implements eight-step full inspection process, with batch inspection reports accompanying each shipment. Accepts SGS/BV on-site random inspections and provides a 10-year structural warranty.
Certification Standards
Holds ISO 9001/14001 and CE certifications; products comply with ASTM and EN standards; possesses mature export customs clearance experience in over thirty countries.
Specialized Performance
Undertakes key domestic and international water conservancy projects (such as the Dubai artificial islands and Mekong River flood control projects), possessing targeted product solutions and supply performance in harsh environments such as coastal areas, permafrost, and saline-alkali land.
FAQ
Q: Is the Gabion Netting easily washed away by water?
A: The stones, once placed in the netting, form a unified structure. Its weight and stability, combined with the flexibility of the netting, make it difficult to be washed away.
Q: Is large machinery required for construction?
A: Generally not. On-site deployment, assembly, binding, and stone filling are all that's needed; this can be done with small machinery or manually.
